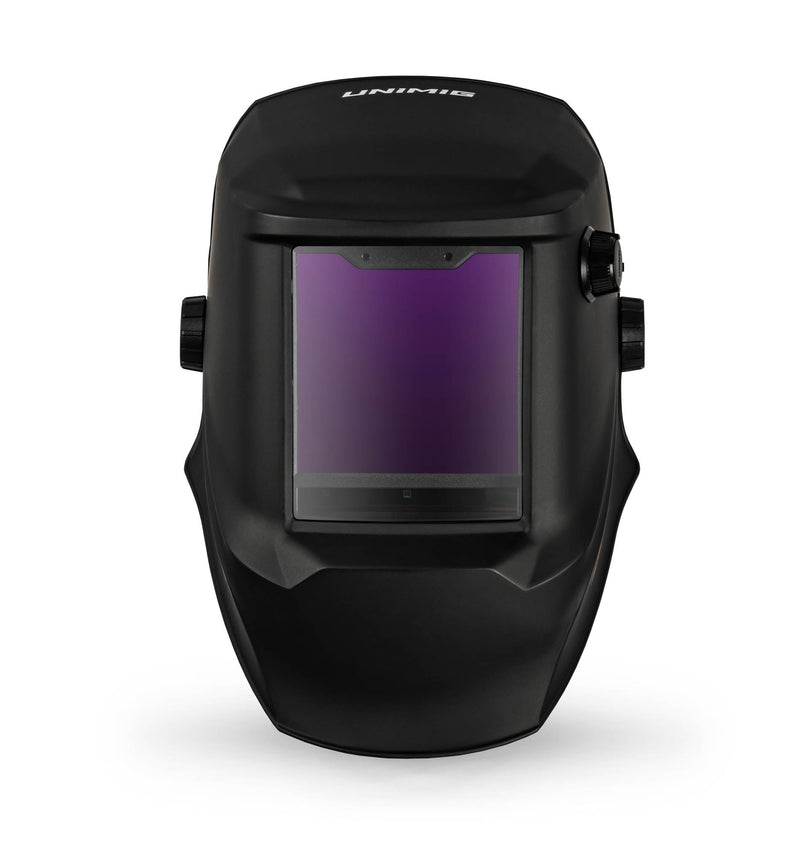

Keep your eyes and face protected during every weld with our Professional Series helmets. Featuring our brand new auto shade detection technology and 5 arc sensors, these helmets take the guesswork out of your shade selection, and the 1/1/1/1 optical classification combined with our largest viewing size lens yet, you’ll be able to see everything you do with crystal-clear clarity. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.

ELITEVISION™ Lens Technology

ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



1/1/1/1 Classification

Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.



Auto Shade Select

Take the guesswork out of your protection. The auto shade select technology instantly detects the arc and decides what shade you need to keep your eyes safe for every kind of welding.



102.5x102.5mm View Size

Unmatched visibility in every situation. The 102.5×102.5mm viewing area lets you see every weld with complete clarity.



3.0 Light State

Get a clear view before and after the weld, as well as during. With a 3.0 light state, you’ll be able to see your workpiece as well with the helmet on as with it off.



External Grind Button

Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.



5 Arc Sensors

Detect every arc instantly. The four optimally positioned arc sensors, coupled with an arc intensity sensor, trigger the Auto-Darkening Filter. Experience unparalleled eye protection right from the start of every weld, even when you’re out of position.



Backup Battery

2 x CR2450 backup batteries improve the performance and reliability of the auto-darkening filter.



4 Point Harness

Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.

Product No: U21015

HELMET SPECIFICATIONS

FILTER DIMENSIONS

114x133x9.5mm

VIEW SIZE

102.5x102.5mm

ARC SENSORS

4 Arc Sensors, 1 Arc Intensity Sensor

CLASSIFICATION

1/1/1/1

LIGHT STATE

3

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.04ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (1-5 for low-high)

POWER SUPPLY

Solar Cells & 2 x CR2450 Replaceable Batteries

WARRANTY

3 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes

GRIND MODE

Yes (External)

STANDARDS

AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)

REPLACABLE PARTS

OUTER LENS

U21022 (Professional Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)

HARNESS

U21024

SWEAT BAND

U21025

Here you’ll find the latest manuals, guides & product/parts information.

Professional Series Welding Helmet Overview

Professional Series Welding Helmet Manual

UNIMIG is pleased to offer a 3 year warranty on Professional Series Welding Helmets. UNIMIG offers warranty across Australia with four UNIMIG service area’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind.
