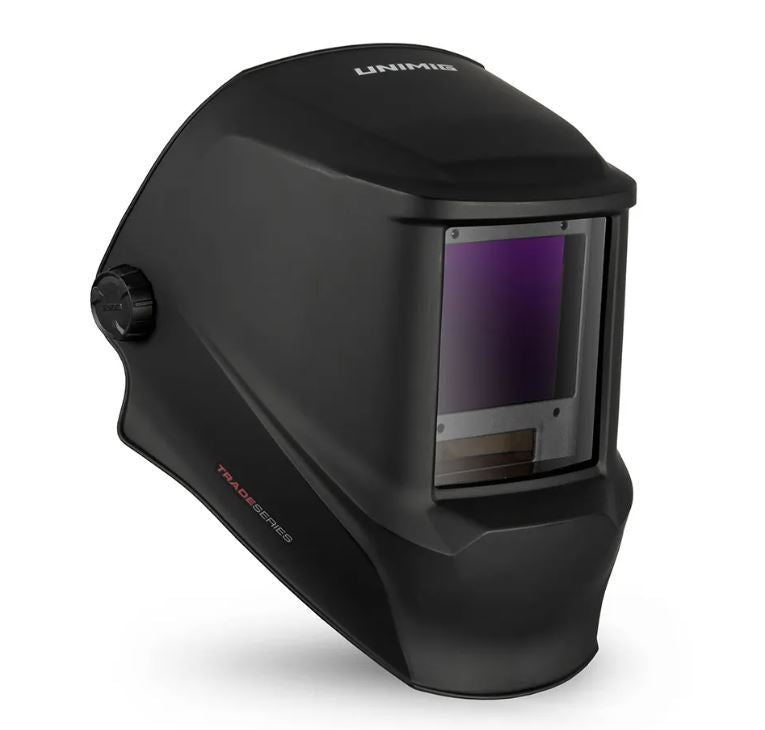

Keep your eyes and face protected during every weld with our Trade Series welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.

100x83.4mm

VIEW SIZE.

5-13

SHADE CONTROL.

4 Arc Sensors

CONSTANTLY MONITOR THE ARC.

External GRIND Button

EASY ACCESS WHEN GRINDING.

ELITEVISION™ Lens Technology

ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



1/1/1/1 Classification

Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.



Memory States

Store up to three of your most frequently used shade settings with the memory state buttons and have your helmet ready to go in an instant.



100x83.4mm View Size

Superior visibility in every situation. The 100×83.4mm viewing area lets you see every weld with complete clarity.



External Grind Button

Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.



4 Arc Sensors

Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes shielded from the start, even when you’re out of position.



Backup Battery

A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.



4 Point Harness

Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimizing neck strain.

HELMET SPECIFICATIONS

FILTER DIMENSIONS

114x133x9.5mm

VIEW SIZE

100x83.4mm

ARC SENSORS

4

CLASSIFICATION

1/1/1/1

LIGHT STATE

4

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.04ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (1-5 for low-high)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery

WARRANTY

3 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes

GRIND MODE

Yes (External)

STANDARDS

AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)

REPLACABLE PARTS

OUTER LENS

U21023 (Trade Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)

HARNESS

U21024

SWEAT BAND

U21025

Here you’ll find the latest manuals, guides & product/parts information.

TRADE Series Welding Helmet Overview

TRADE Series Welding Helmet Manual

UNIMIG is pleased to offer a 3 year warranty on Trade Series Welding Helmets. UNIMIG offers warranty across Australia with four UNIMIG service area’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind.
