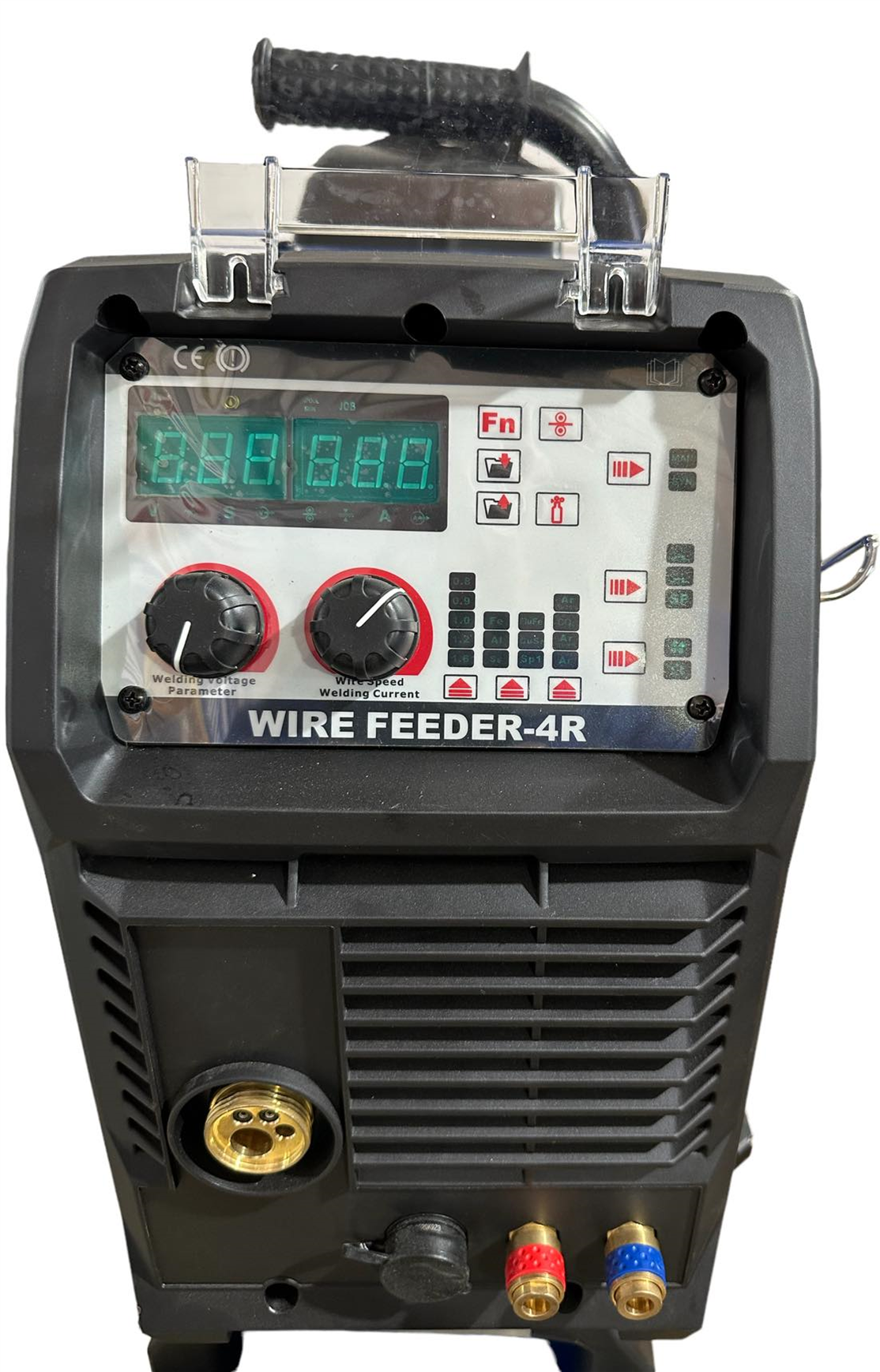

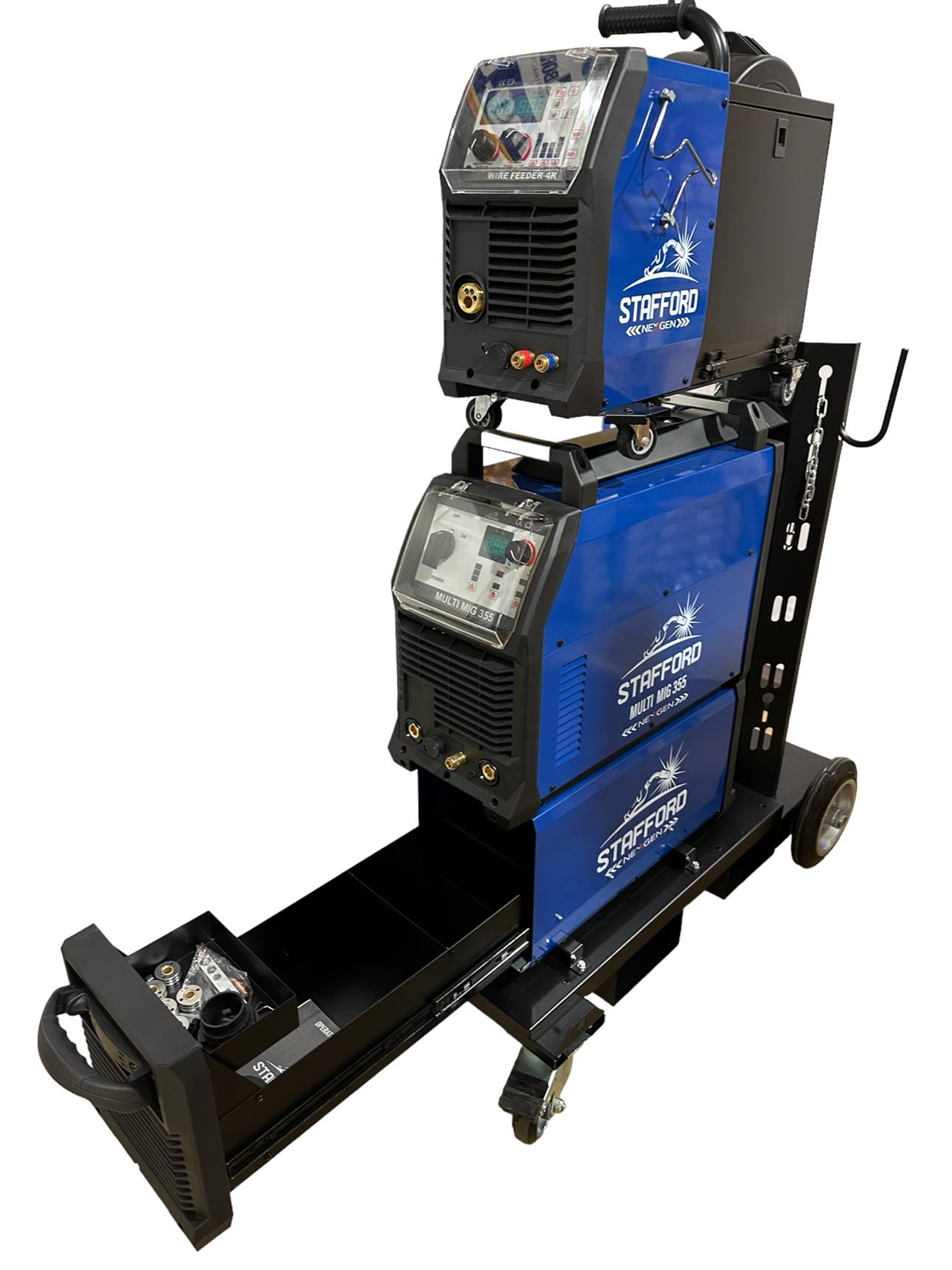

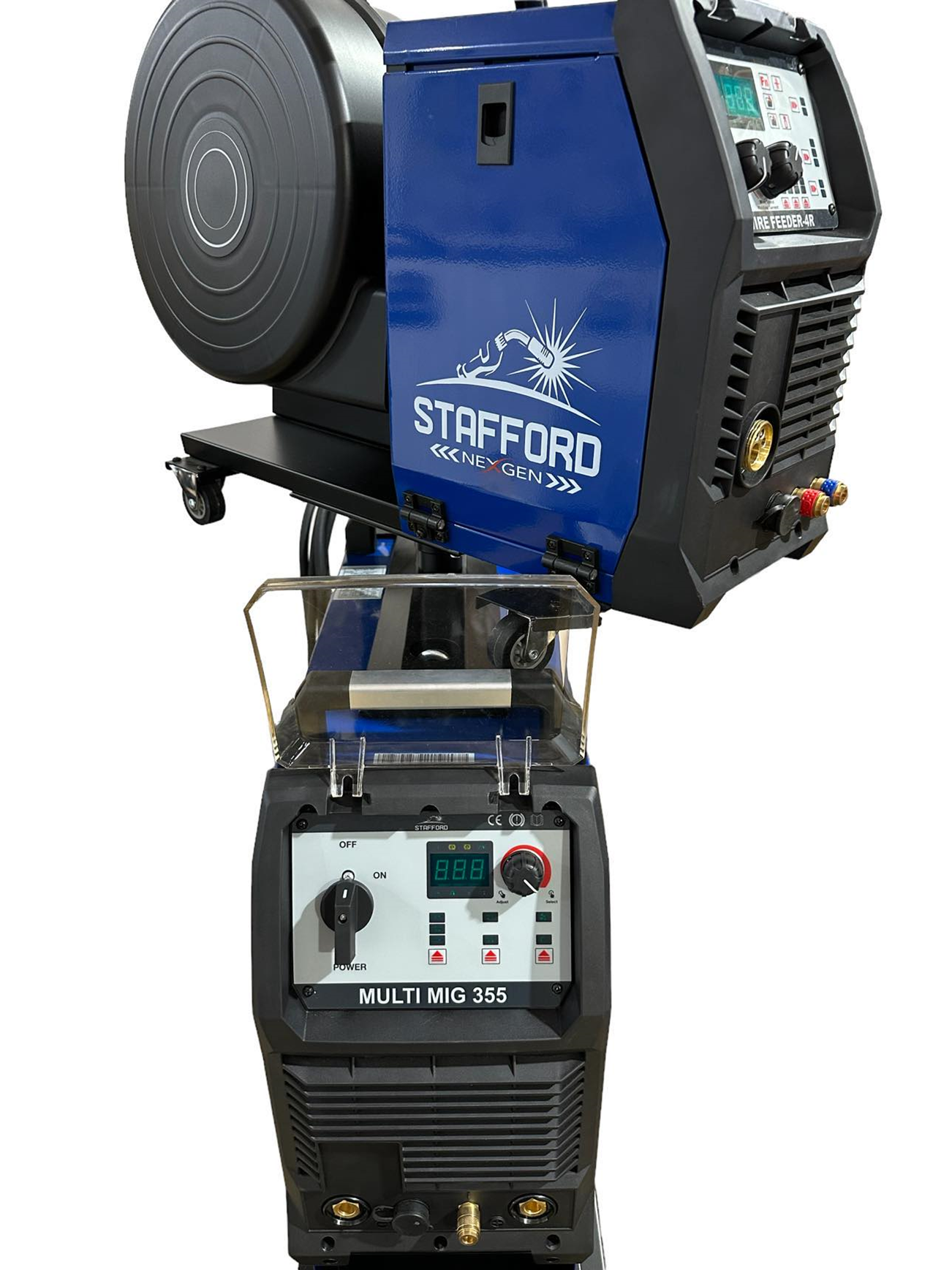

The STAFFORD MULITMIG 500i has a 3 phase power supply which allows for a high duty cycle for continues welding. The machine is equipped with a separate wire feeder with 10m interconnecting leads and comes standard on a heavy duty trolley. The STAFFORD 500 Multimig can be setup for MIG, Stick, DC TIG, Spool gun and has Gouging capabilities.
The machine can be used as a semi synergic unit or can be put into manual mode for full control.
PACKAGE INCLUDES:
- 10 MTR Interconnecting Leads
- Separate Wire Feeder
- 4 MTR MB36 Euro-Fit MIG Torch
- 8 MTR Earth Lead with Top Gun 600A Clamp
- 8 MTR Electrode Holder Lead Twist Lock
- 0.8mm – 0.9mm “V” Solid Rollers
- 1.2mm – 1.6mm “V” Solid Rollers
- 0.9mm – 1.2mm “F” Flux Cored Rollers
- 1.2mm – 1.6mm “F” Flux Cored Rollers
- Welding Trolley with Storage Drawer
- Quick Connect Fittings for TIG Torch and Gas Hose
- Twin Gauge Regulator
- 2MTR Gas Hose with Quick Connect Fitting
- FOR INDUSTRIAL USE
MACHINE SPECIFICATIONS:
- Input Voltage (V) 415 A/C
- Frequency (Hz) 50/60 Hz
- Output Current Range (A) 40 - 500A
- MIG Rated Duty Cycle (%) 60% @ 500A 100% @ 400A
- Machine Weight (Assembled) 121 Kg
- Machine Dimensions(mm) (Assembled) 1040 x 1450 x 510
- Package weight (Power Source) 30 Kg (SWF) 46 Kg (Storage Drawer) 15Kg (Welding Trolley) 30 Kg
- Package Dimensions (mm) (Power Source) 760x320x580 (SWF) 820x460x560 (Storage Drawer) 770x260x370 (Welding Trolley) 1110x510x270
- Warranty 3 Years
|
