P/N PROWELD180

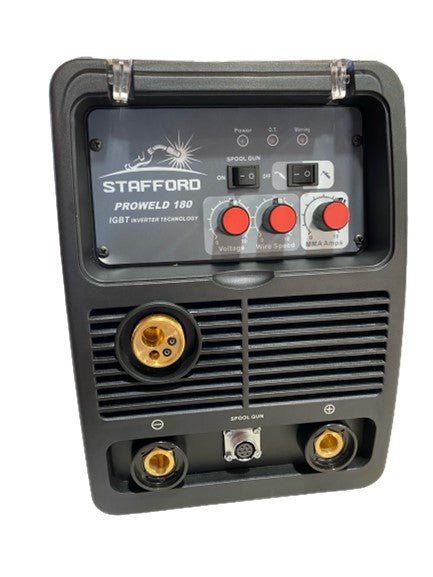

STAFFORD PROWELD 180
THE STAFFORD PROWELD 180 Welding Machine is the ultimate light industrial inverter welder on the market.
The PROWELD 180 INVERTER WELDER is a single phase compact power source designed specifically for handymen or tradesmen that require high quality welding performance.
This machine is a MULTIFUNCTION machine that can be used as 180amp MIG welder or a 160amp DC arc welder, which makes it ideal for many applications.
Durable feed head with quick-release drive roll tension lever provides positive feed with adjustable tension plus easy accessibility to thread new wire.
With the addition of the spool gun (optional extra) this machine can be setup easily to MIG weld aluminium without the hassles of feeding aluminium wire through the hand piece.
The PROWELD 180 is a breakthrough machine, utilizing the efficiency and reliability of IGBT Inverters technology which allows a huge increase in duty cycle.
Incorporating the latest (Infineon Germany) IGBT Inverter Technology , it is suitable for welding stainless steel, copper, iron, brass, titanium, carbon steel, and more.
Built to our specification and manufactured in compliance to AS/NZ60974.1
EMC and C-Tick Approval.
PRODUCT FEATURES
HIGH DUTY CYCLE 35% @ 180amps
MULTIFUNCTION - MIG & DC STICK/MMA
GAS & GASLESS MIG WELDING
SMALL SIZE AND LIGHT WEIGHT
GERMAN MADE “INFINEON” IGBT INVERTER COMPONENTS.
FINE ADJUSTABLE WELDING CURRENT FROM 30-180amps
GENERATOR SAFE ( 7.5 KVA )
MACHINE PACKAGE
*STAFFORD PROWELD 180
*4m BINZEL STYLE MB24 MIG TORCH
*ARC LEAD SET
*KNURLED ROLLER FOR GASLESS WIRE
*ARGON REGULATOR
*GAS HOSE WITH QUICK RELEASE FITTINGS
*SPOOL GUN PLUG
FOR INDUSTRIAL USE
SPECIFICATIONS
Input Voltage (V) AC240V
Frequency (Hz) 50/60
Rated Input Current (A) 30
Output Current Range (A)
MIG: 30-200amp
ARC: 30-160amp
Rated Duty Cycle (%) 35% @ 180amp
Power Factor 0. 9
Efficiency (%) 83
Output Voltage Adjustment (V) 15-26
Insulation Grade F
Housing Protection Grade IP21S
Wire-feeding Speed (m/min) 22-13
Weight (KGS)
Fully Compliant to AS 60974-1
A 5-year warranty on both our PROWELD 180 & 250.*Please note warranty only applies to the power source only*
