Description

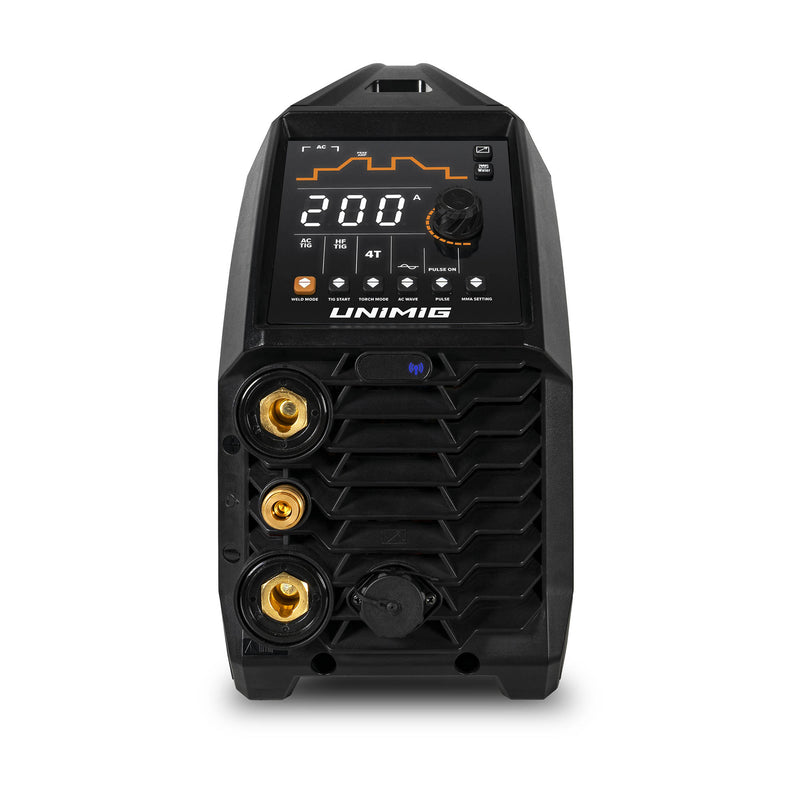

RAZOR TIG 200 AC/DC WELDER
Get incredible results from start to finish with this professional-grade TIG welder.
- Effortlessly weld any metal with the high-frequency AC/DC TIG
- The ultimate combination of AC and DC available with Mixed Arc settings
- Switch your AC welds to suit your needs with the choice of three waveforms
- A 5-year warranty to reflect our confidence in this machine
PACKAGE INCLUDES
- RAZOR TIG 200 AC/DC Welder
- 8m T2 TIG Torch
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Argon Flowmeter Regulator
- 1.8m Gas Hose with fittings
- Operating Manual
10 AMP PLUG
CONNECT TO A 10 AMP OUTLET.
AC/DC HIGH FREQUENCY TIG
PERFECT FOR ALUMINIUM.
PULSE FUNCTION
MINIMISE DISTORTION ON THE WELDED MATERIAL.
FOOT CONTROL READY
EXTRA VERSATILITY AND CONVENIENCE.
HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.
10A Plug
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
AC/DC
Weld every kind of metal. With the ability to run on an Alternating Current, you’re able to weld aluminium as effortlessly as mild and stainless steels.
High-Frequency TIG
Maximise your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre- and post-gas and up and down slope parameters.
Multiple AC Waveforms
Completely customise your aluminium welds. Switch between Sine, Square, and Triangle waves to change the arc characteristics, bead profile, and penetration to suit your weld.
Mixed AC/DC
Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld thicker materials.
Pulse TIG
Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.
Foot Control Ready
The perfect accessory, easily adjust your amperage to suit every weld as you go without disrupting your torch movement.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Advanced MMA Features
The RAZOR TIG 200 AC/DC features adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
RAZOR TIG 200 AC/DC Feature Video
Check out all of the features on the RAZOR TIG 200 AC/DC.
MACHINE SPECIFICATIONS
240V Single Phase
10 AMP
9.8
5-200A
65
IP23S
H
9.0
35/50
AS/NZ60974-1
TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium MMA: Mild Steel, Stainless Steel, Cast Iron
5
TIG SPECIFICATIONS
AC/DC HF TIG & AC/DC Pulse
5-200A
20% @ 200A, 60% @ 115A, 100% @ 90A
1-8mm
STICK SPECIFICATIONS
20-160A
15% @ 160A, 60% @ 80A, 100% @ 62A
2.5-4.0mm
2-10mm
SIZE & WEIGHT
500×170×340mm
11.7
MACHINE FEATURES
YES
YES
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 5-year warranty on the RAZOR TIG 200 AC/DC*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
