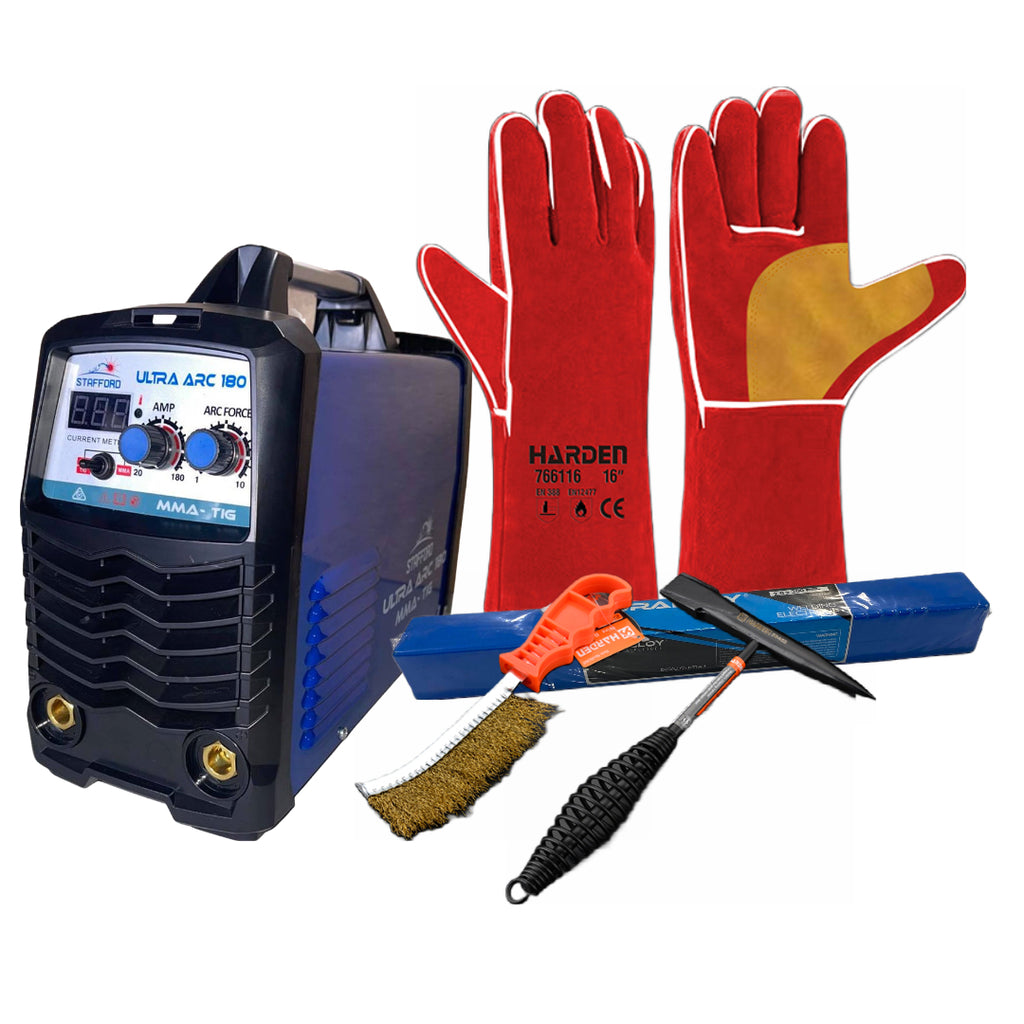

BUNDLE - STAFFORD ULTRA ARC 180
Includes;
- Stafford Ultra Arc 180 (ULTRAARC180)
- Duralloy Electrode 13z 2.5mm (DAE13Z25M)
- Harden Chipping Hammer (590541)
- Harden 225mm Wire Brush (620140)
- Harden Welding Gloves (766116)
STAFFORD ULTRA ARC 180
STAFFORD ULTRA ARC 180 IS AN IGBT INVERTER STICK (MMA) WELDING MACHINE FOR STICK AND TIG PROCESSES.
THE STAFFORD ULTRA ARC 180 PACKAGE IS A PROFESSIONAL, LIGHT WEIGHT ARC WELDING PACKAGE WHICH WILL SATISFY MOST DOMESTIC, LIGHT INDUSTRIAL APPLICATIONS, AND RURAL USES.
PRODUCT FEATURES
HOT START
ANTI-STICK
VRD
ARC FORCE
IGBT INVERTER TECHNOLOGY
10-180amp WELDING OUTPUT
DC MMA / DC TIG WELDING
4m ARC LEAD - 4m EARTH LEAD
SPECIFICATIONS
Input Voltage (V) AC240V
Frequency (Hz) 50
Rated Input Current (A) 27.2
Output Current Range (A) 20-180amp
Rated Duty Cycle (%) 35 @ 180amp
Power Factor 0.89
Efficiency (%) 83
I 1eff = 13.1
I 1max =34A
Insulation Grade F
Housing Protection Grade IP21S
Weight (KGS) 5
Fully Compliant to AS 60974-1
3 YEAR WARRANTY
