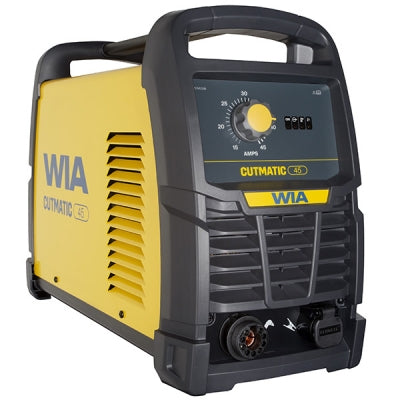

CUTMATIC 45 PACKAGE

From the workshop to on-site the Cutmatic 45 is highly portable and can go where you go. Capable of cutting mild steel, stainless steel and aluminium, its serious cutting capabilities can effortlessly clean cut up to 16mm and server cut up to 20mm.

With up-to-date date technology, the Cutmatic 45 offers more than its competition, including power factor correction for maximum efficiency. Built with quality components and manufactured to deliver, you’ll get more than you pay for with the Cutmatic 45.

• 45 A single phase plasma cutter
• Fitted with a 15 Amp plug
• Portable - Only 11kg
• Power Factor Correction - Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
• Plasma Torch with Pilot Arc Start - Designed for a safe and sound strike without high frequency
• Water and Air Filter - Removes water in the air. Increases torch tip life
• IP21S rated
• Generator compatible – 8-10 kVa

Single Phase

15 Amp Plug

IP21S Rated

Power Factor Correction

Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators.

Built-In Thermal Protection

Prevents the machine from operating beyond its safe thermal zone.

Clean Cut/Sever Cut

• Clean Cut 10-16mm
• Sever Cut 12-20mm

Plasma Torch with Pilot Arc Start

Designed for a safe and sound strike without high frequency.

Water and Air Filter

Removes water in the air. Increases torch tip life.

Portable

Weighing only 11kg, the Cutmatic 45 can go where you go.

3 Year Warranty

SPECIFICATIONS

Primary Voltage	Rated Primary Current	Max. Primary Current	Recommended Generator KVA	Supply Plug	IP Rating	Weight	Standards Compliance
240 VAC – 50/60 Hz	14.2 Amps	22.5  Amps	8 kVA	15 Amp	IP21S	11kg	AS60974.1 & AS1674.2 (VRD)

PLASMA SPECIFICATION

Current Range	Rated Output @ 40°C (10min)	Cutting Tip Size	Mild Steel Cutting Range	Stainless Steel Cutting Range	Aluminium Cutting Range	Air Consumption	Air Pressure
15-45 Amps	45A/98V @ 40% 28A/91.3V @ 100%	0.8-1.0mm	Clean cut 16mm Sever cut 20mm	Clean cut 16mm Sever cut 20mm	Clean cut 16mm Sever cut 20mm	1151/min	90PSI/0.6MPA
