MAY - JUNE 2024 Bundle Contents - PK11092

• RAZOR MULTI 220 (U11008K)
• Trade Series Welding Helmet – Dragon (U21027)
• BINZEL 24 Style Consumable Starter Kit (UMSK24)
• 15A 2.5mm Heavy Duty Extension Lead 10m (U51006)
• 0.9mm HYPERMIG ER70S-6 Mild Steel Wire 5kg (MS.9B)
• ROGUE Heavy Duty Welding Gloves (UMWG8)

U11008K

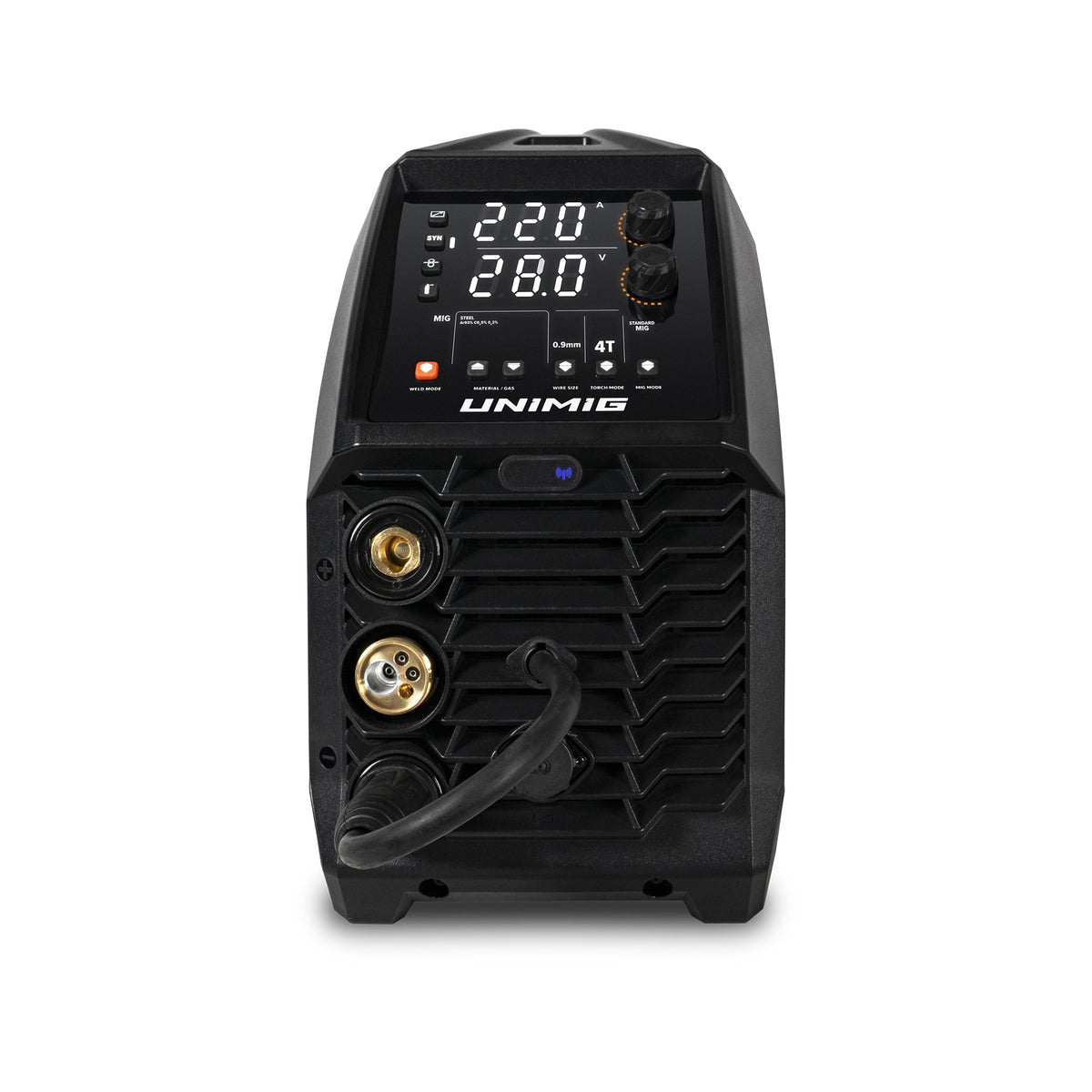

A professional machine in a portable case with all the power, the RAZOR MULTI 220 is perfect for the worksite or the workshop.

• Quick and easy setup with synergic MIG programs
• 3-in-1 multi-process machine so you can MIG, TIG & STICK
• Geared wire drive system for smooth wire feeding
• A 5-year warranty to reflect our confidence in this machine

PACKAGE INCLUDES

• RAZOR MULTI 220 Welder
• 4m M24 Digital MIG Torch

• 4m Twist Lock Electrode Holder

• 4m 300 Amp Earth Clamp & Lead

• Twin Gauge Argon Regulator

• 1.8m Gas Hose with fittings

• Operating Manual

• 0.8-0.9mm V Groove Roller

• 0.8-0.9mm F Groove Roller

•  1.0-1.2mm U Groove Roller

HD Backlit Interface

This next generation interface panel is bright and easy to read in any environment.



Synergic MIG Control

Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.



Multi-Process Welding

Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and STICK welding all in one unit, you can save valuable time and effort without sacrificing quality.



Digital Control MIG Torch



Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.



Spool Gun Ready

Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.



Gas & Gasless MIG

Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you’re working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.



Geared Wire Drive

For a consistent and smooth wire-feeding experience. The geared wire drive unit gives more power pushing to the wire, improving the wire feeding, especially in longer torches.



Trigger Controlled DC Lift Arc TIG

The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.



Advance MMA Features

This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.



Smart Fan

Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

14.7

RATED OUTPUT

30A/15.5V - 220A/25V

NO LOAD VOLTAGE (V)

60

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years)

5

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-220A

MIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE

5-220A

TIG DUTY CYCLE @ 40°C

15% @ 220A / 60% @ 110A / 100% @ 85A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-180A

STICK DUTY CYCLE @ 40°C

15% @ 180A / 60% @ 90A / 100% @ 70A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

560×220×400

WEIGHT (kg)

15.1

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

YES

SPOOL GUN CONNECTION

YES

FOOT CONTROL CONNECTION

YES

BURNBACK ADJUSTMENT

YES

WIRE INCH

YES

INDUCTANCE CONTROL

YES

THERMAL OVERLOAD PROTECTION

YES

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR MULTI 220 Info Sheet

RAZOR MULTI 220 Manual

UNIMIG is pleased to offer a 5-year warranty on the RAZOR MULTI 220*.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only
