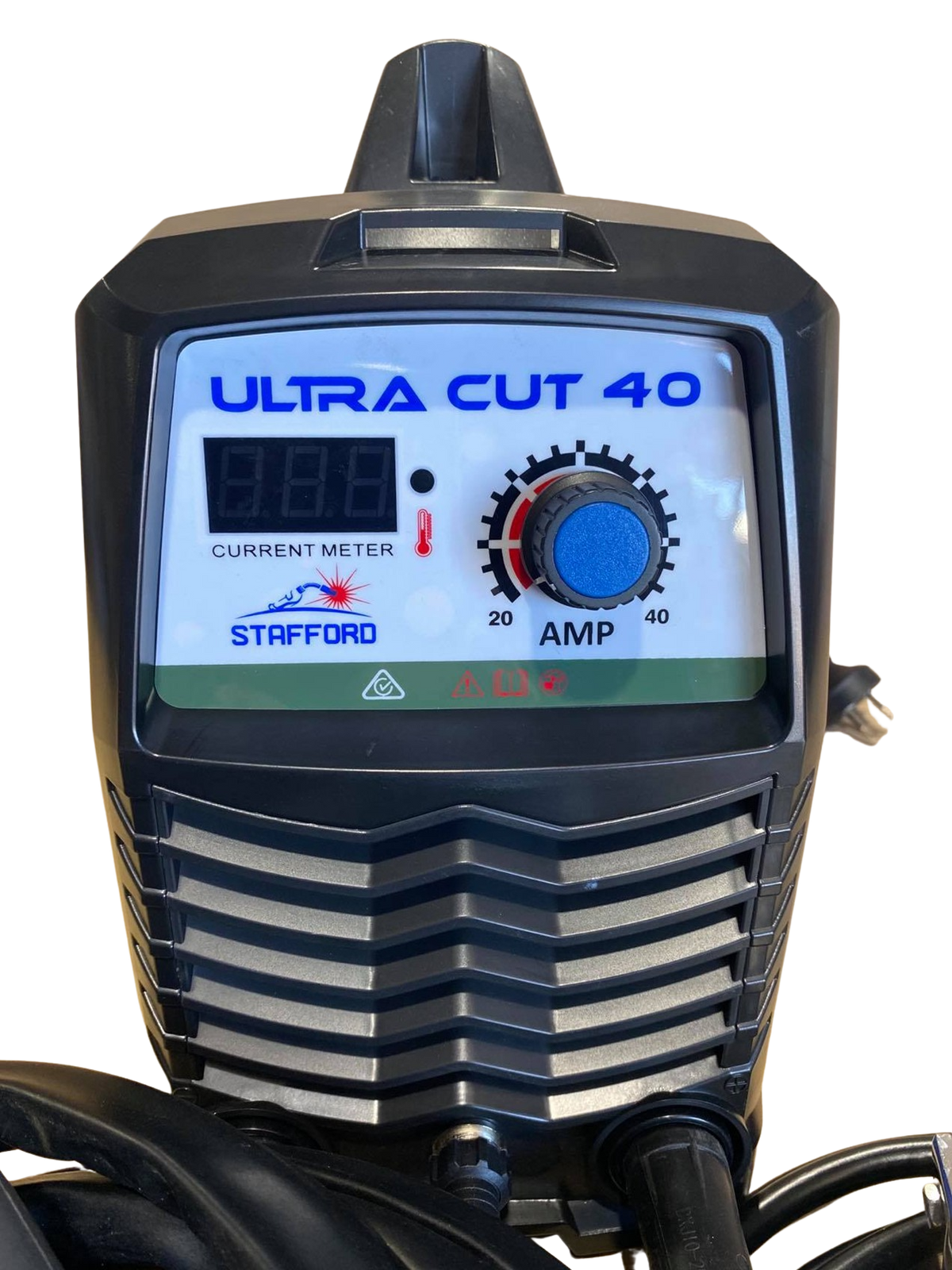

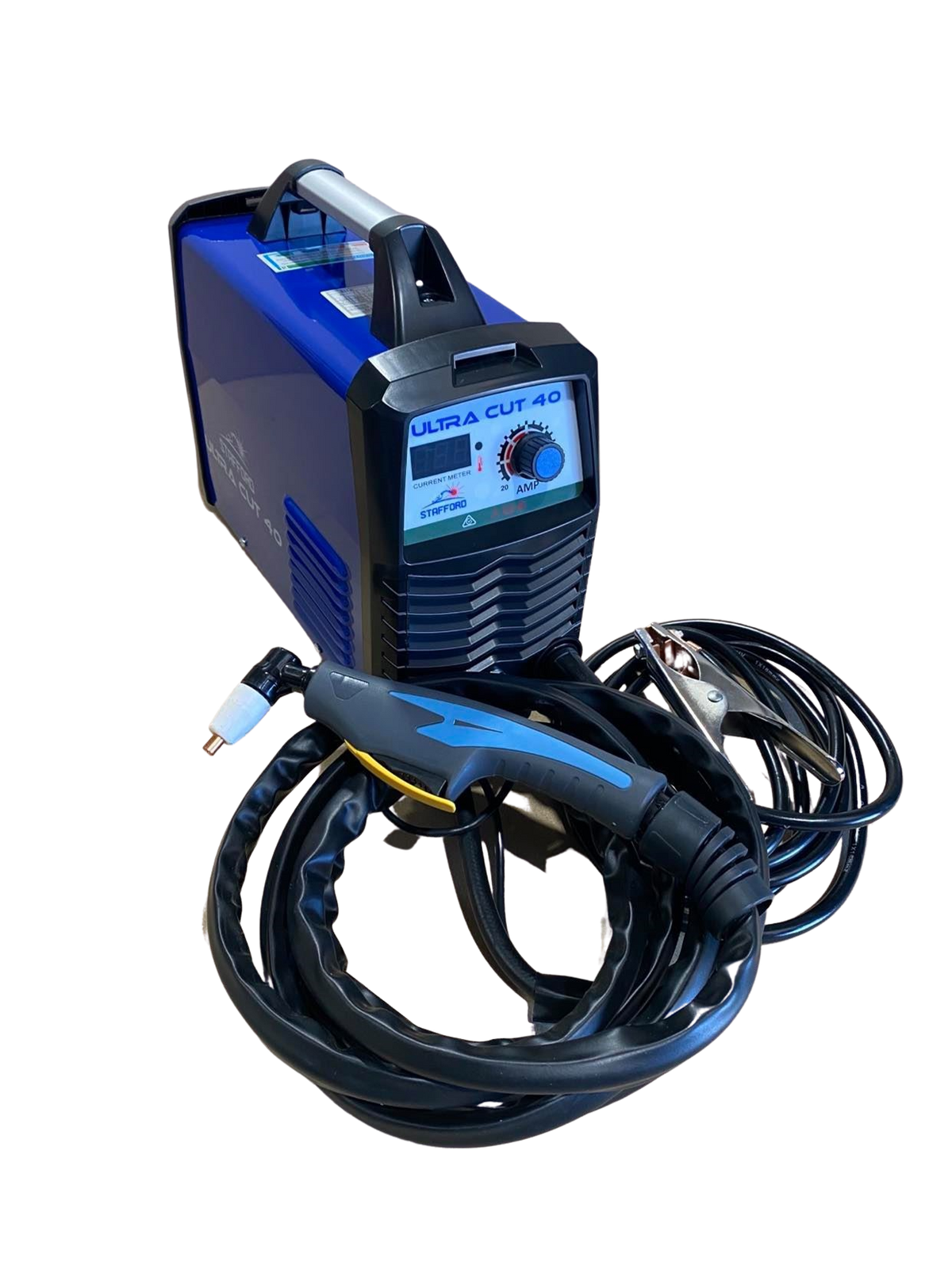

The STAFFORD ULTRA CUT 40 Plasma Cutter (10amp plug) offers professional quality plasma cutting with results that matter. It features IGBT DC inverter technology. The machine delivers a high temperature plasma stream that effortlessly cuts through all electrically conductive materials such as steel, cast iron, stainless steel, copper and brass. Fact is, what you get is powerful, fast and accurate cutting with touch HF contact start function that enables the torch tip to be placed directly on the work piece throughout the cutting process. The output current is adjustable between 20A and 40A to produce flawless results with a wide range of applications including sheet metal fabrication, site work, automotive repairs and other repair and maintenance works. Plus, the advanced cooling system with its large fan also ensure that heat is dissipated easily for better performance and durability. Not least, safety is never taken for granted as the plasma cutter is protected from overloading current, overheating and over/under voltage situations It also complies with current Australian standards and is SAA, EMC, CE and AS 60974-1.
Features:
- Compact and lightweight
- PT31 plasma torch
- HF contact start
- IGBT inverter technology
- Super stable DC inverter technology
- Industry-standard DIN sockets
- Adjustable output current range 20A to 40A
- Outstanding 30,000 MTPF hours cooling
- Overheating, over current, and over/under voltage protection
- SAA, EMC, CE and C-Tick certified
- FOR INDUSTRIAL USE
Specifications:
Power Voltage: Single Phase 240V ±15%, 50Hz
Power Plug: 10A AU Standard
Output Current Range: 20A 40A
I 1eff = 9A
I 1max = 27A
Efficiency: 85%
Duty Cycle: 15% @ 40A, 60% @ 20A
Cut Thickness: 10mm CLEAN CUT
Shell Protection Grade: IP21s
Power Cord Length: 1.8m
Plasma Torch Length: 4m
Earth Clamp Cable Length: 1.2m
Generator Recommended: 7kVA (real power)
Net Weight 6.4kg
