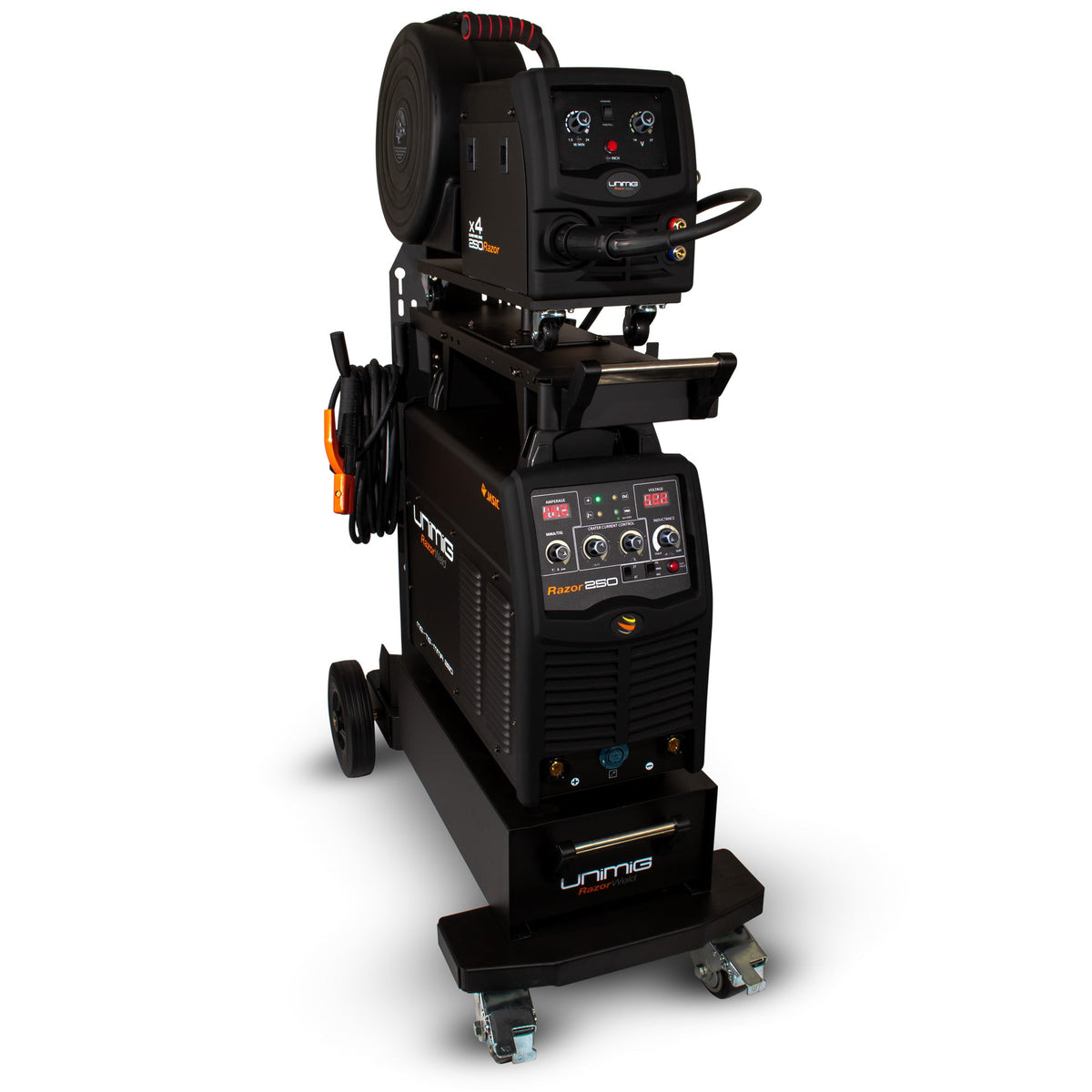

The RAZOR™ 250 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 250 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size. The RAZOR™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.
Product No: KUMJR250SWF
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single-Phase
SUPPLY PLUG
No plug supplied (32 AMP Recommended)
RATED INPUT POWER (kVA)
12.2
Ieff (A)
28.0
RATED OUTPUT
30A/15.5V - 250A/26.5V
NO LOAD VOLTAGE (V)
56.5
PROTECTION CLASS
IP21S
INSULATION CLASS
F
POWER FACTOR
0.72
MINIMUM GENERATOR (kVA)
13.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years)
3
MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
30-250A
MIG DUTY CYCLE @ 40°C
35% @ 250A
MIG WIRE SIZE RANGE
0.6-1.0mm
MIG WIRE SPOOL SIZE
5kg / 15kg
MIG WELDING THICKNESS RANGE
1-12mm
DRIVE ROLLER SIZE
30/22 (x2)
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC Lift Arc
TIG WELDING CURRENT RANGE
10-225A
TIG DUTY CYCLE @ 40°C
35% @ 225A
TIG WELDING THICKNESS RANGE
1-10mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
10-250A
STICK DUTY CYCLE @ 40°C
35% @ 250A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-12mm
SIZE & WEIGHT
DIMENSIONS (mm)
595x280x440mm
WEIGHT (kg)
40.6kg
SWF DIMENSIONS (mm)
630x235x420mm
SWF WEIGHT (kg)
14kg
SWF INTERLOCKING CABLE LENGTH (m)
10m
MACHINE FEATURES
WIRE DRIVE
Seperate 4 Geared
VRD
Yes
SPOOL GUN CONNECTION
Yes
PUSH / PULL GUN CONNECTION
Yes
BURNBACK ADJUSTMENT
Yes
WIRE INCH
Yes
INDUCTANCE CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
