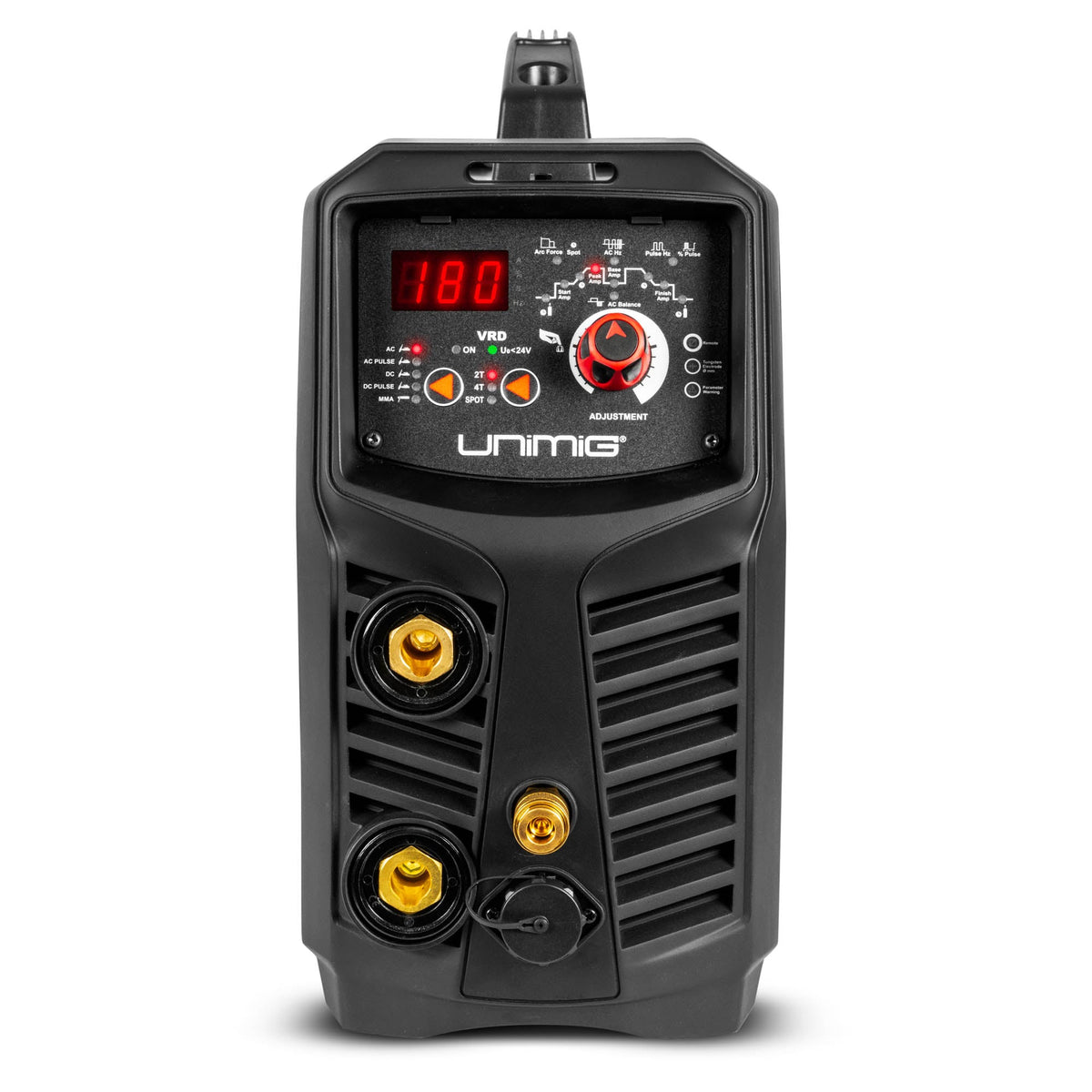

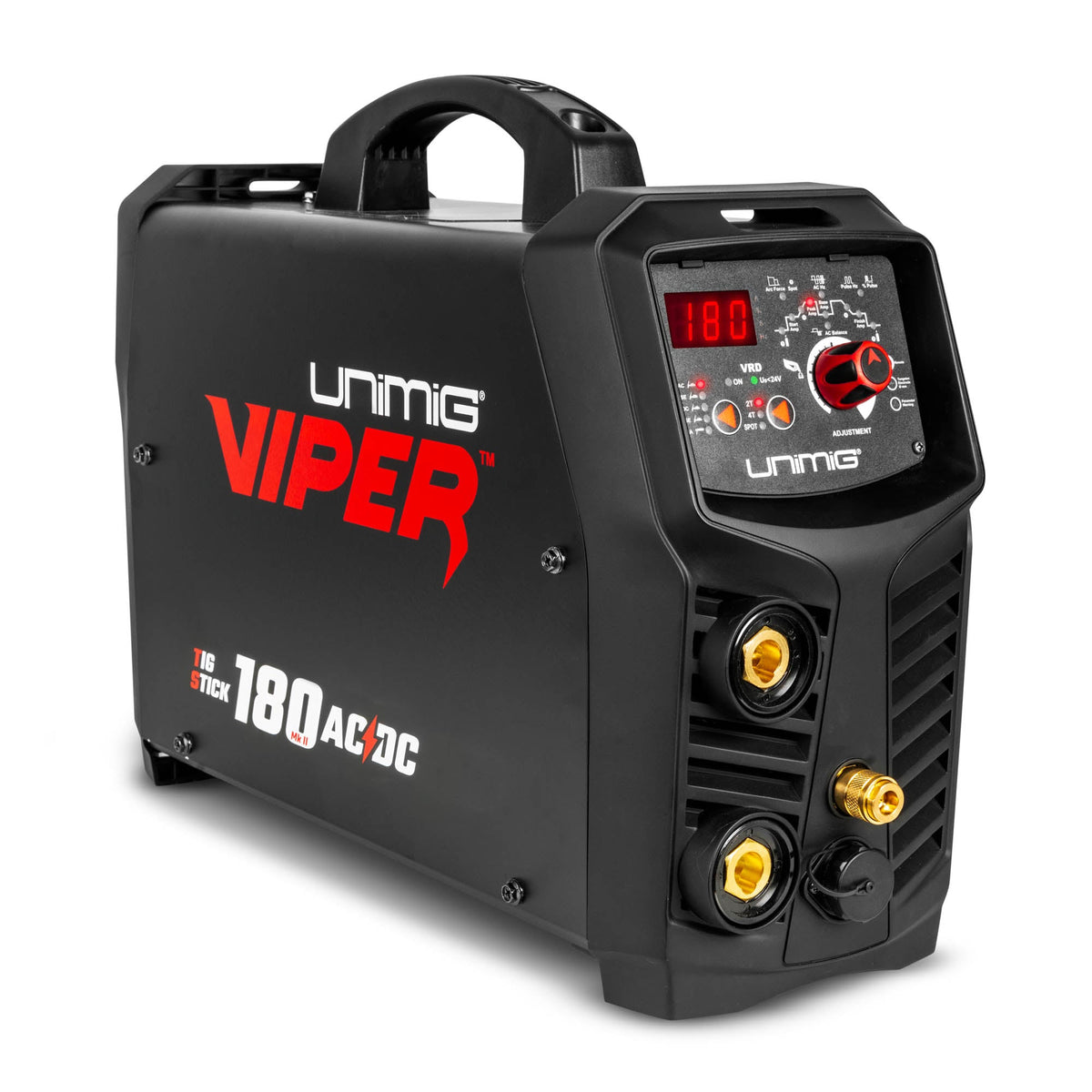

The VIPER™ 180 AC/DC allows for full control over the High-Frequency TIG welding process to ensure you can maximise your results from start to finish. Controllable parameters include Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time, among many others.

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the VIPER™ 180 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

With all of these features packed into an affordable package, the VIPER™ 180 AC/DC is a must-have for any DIY TIG enthusiast.

PACKAGE INCLUDES

• VIPER™ 180 AC/DC MK II TIG Welder
• 4m High-Performance T2 TIG Torch
• 4m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• Argon Flowmeter Regulator
• 2m Gas Hose Complete with fittings
• Operating Manual

AC/DC HIGH-FREQUENCY TIG

No need to arc up. High-Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the workpiece reducing the risk of contaminating the tungsten or the weld.



PULSE TIG FUNCTION

Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.



10 AMP PLUG

Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



FOOT CONTROL READY

This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

5.20

Ieff (A)

8.9

RATED OUTPUT

5-180A

NO LOAD VOLTAGE (V)

7-55

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys

WARRANTY (Years)

2

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG / AC/DC Pulse

TIG WELDING CURRENT RANGE

5-180A

TIG DUTY CYCLE @ 40°C

15% @ 180A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-130A

STICK DUTY CYCLE @ 40°C

10% @ 130A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

8mm

ARC FORCE

0-40

SIZE & WEIGHT

DIMENSIONS (mm)

500*170*340mm

WEIGHT (kg)

11kg

MACHINE FEATURES

VRD

Yes

FOOT CONTROL CONNECTION

Yes (UTJRFC-4)

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

Here you’ll find the latest manuals, guides & product/parts information.

VIPER 180 AC/DC MK II Info Sheet

VIPER 180 AC/DC MK II Manual

UNIMIG is pleased to offer a 2-year warranty on the VIPER™ 180 AC/DC MK II*.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only
