Description

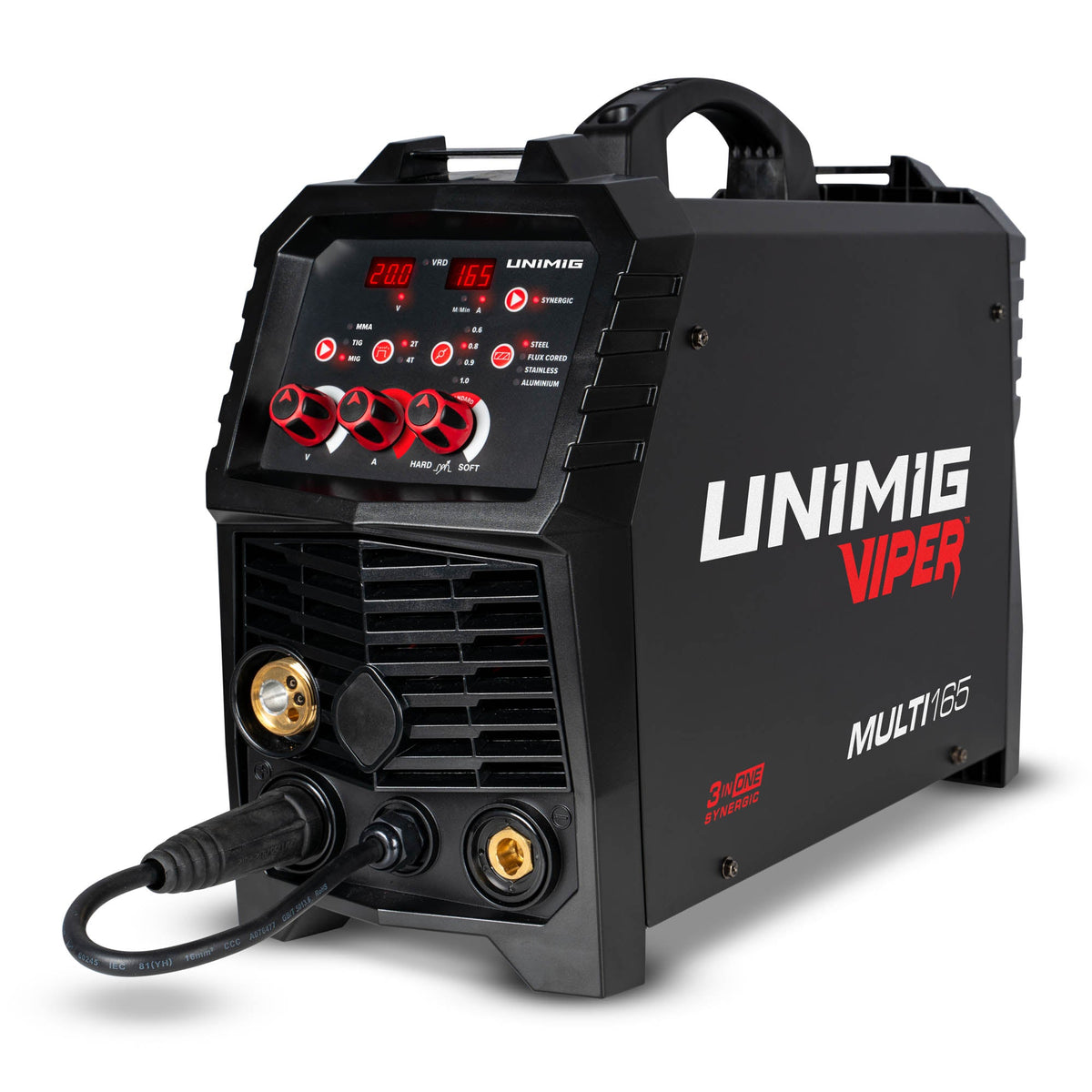

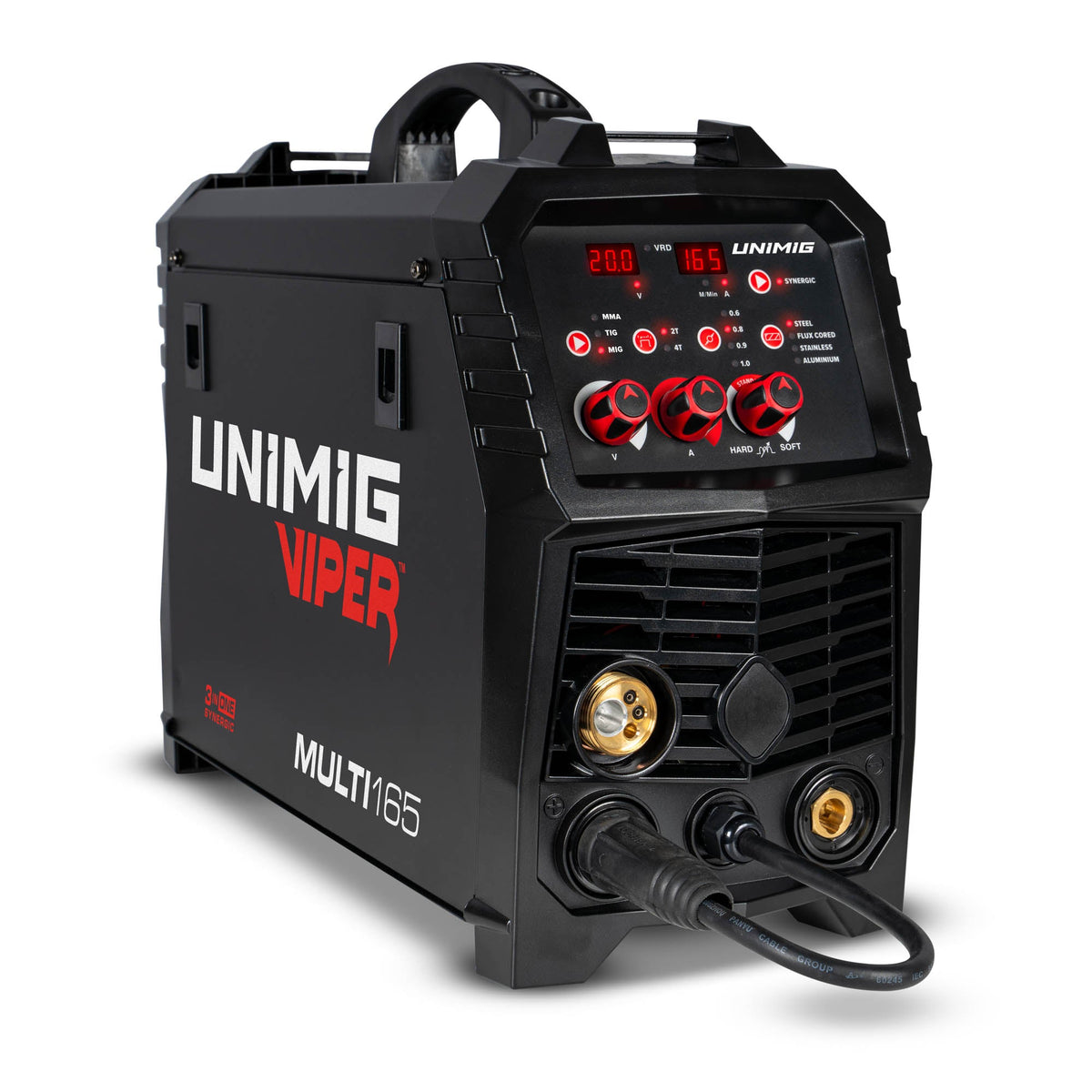

VIPER MULTI 165 MIG/TIG/STICK WELDER
U11006K
Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.
PACKAGE CONTENTS
- VIPER MULTI 165 MIG/TIG/STICK Welder
- 3m SB15 MIG Torch
- 3m Twist Lock Electrode Holder
- 300 Amp Earth Clamp & Lead
- Argon Flowmeter
- 2m Gas Hose Complete with fittings
- Operating Manual
10 AMP PLUG
CONNECT TO ANY STANDARD OUTLET.
3 IN 1 MULTIPROCESS
FOR SOFTER WIRES, SUCH AS ALUMINIUM.
SYNERGIC MIG CONTROL
TAKE THE GUESSWORK OUT OF SETUP
GAS & GASLESS MIG
RUN MILD STEEL, STAINLESS STEEL & FLUX-CORED MIG WIRE.
Synergic MIG Control
The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and wire type,
and adjust your amperage to suit your work piece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.
Gas & Gasless MIG
This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.
Multi-Process Welding
This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.
10 AMP Plug
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
Lightweight & Portable
Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.
Feature Video
Check out all the features on the VIPER MULTI 165 MIG/TIG/STICK Welder.
MACHINE SPECIFICATIONS
240V Single Phase
10 AMP
10.0
30A/15.5V - 165A/22.3V
64
IP21S
H
9.0
35/50
AS/NZ60974-1
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
2
MIG SPECIFICATIONS
30-165A
10% @ 165A / 60% @ 68A / 100% @ 52A
0.6-1.0mm
1kg / 5kg
1-8mm
30/10
TIG SPECIFICATIONS
DC Lift Arc
20-160A
10% @ 160A / 60% @ 65A / 100% @ 50A
1-6mm
STICK SPECIFICATIONS
20-140A
10% @ 140A / 60% @ 58A / 100% @ 45A
2.5-3.2mm
2-8mm
SIZE & WEIGHT
513x206x391mm
9.8kg
MACHINE FEATURES
Standard
Yes
Yes
Yes
Yes
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 2 year warranty on the VIPER MULTI 165*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well.UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
