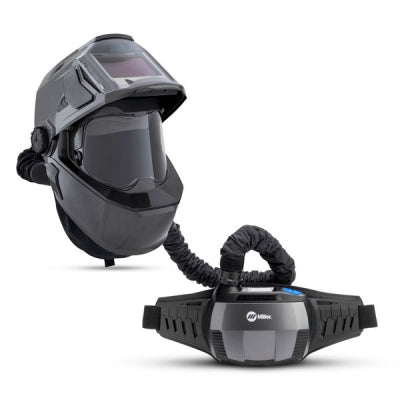

Miller Vortex HDV PAPR System Brochure- Blower Assembly Gen2 - HEPA filter, Prefilter, Spark guard
- Prefilters (x6)
- Breathing tube
- Breathing tube cover
- Padded belt
- Shoulder straps
- Lithium-ion batteries (x2)
- Battery charger
- Battery charger supply cable with AU plug
- PAPR owner manual
- Flowmeter
- Carry bag
- Ultra HDV helmet assembly
- Spare HDV front cover lens (x2)
- Spare HDV grind shield (x2)
- Spare cover lens inside (x2)
- Helmet owner manual
- Tear away grind shield (x2)
Description
POWERED AIR PURIFYING RESPIRATOR.
PACKAGE INCLUDES
PART NUMBERS
- 305001
LCD Display
Allows users to see fan speed, filter time, battery level and current time.
Filter Timer
Tracks how many hours of use the filter has.
Audible and Vibrating Alarm
Notifies users in noisy environments of low battery due to reduced airflow.
Lightweight Lithium-Ion Battery
Provides long battery life (up to ten hours on low speed) with no memory retention from frequent charging (three-four charge cycle).
3 Air Speeds - Low, Medium and High
Allows users to adjust the volume of air to maximise comfort in varied work conditions.
Lightweight Lithium-Ion Battery
Provides long battery life (up to ten hours on low speed) with no memory retention from frequent charging (three-four charge cycle).
Patent-Pending Dualtec Manifold System
Optimises helmet balance and sound, while 6-point air distribution system maximises cooling through targeted air placement.
Integrated 3-Point Back-Pack Style Shoulder Straps
Enhances comfort, reduces fatigue over long shifts by distributing system weight to alleviate back pain.
Quick-Release Belt Design
Allows for seamless system on/off.
Lightweight Low-Profile Blower Design (1362GM)
Extends wear-ability without interfering with surroundings.
6-Point Air Distribution + 3 Air Speeds
Allows users to adjust the volume of air to maximise comfort in varied work conditions.
Lightweight Low-Profile Blower Unit
Extends wear-ability without interfering with surroundings.
Monitors Battery Level, Filter Time and Current Time
Huge 174x126mm Integrated Grind Shield
The 174mm x 126mm viewing area provides a clear view for grinding and other tasks, increasing helmet-on-time, decreasing the potential for eye injuries.
Exclusive Miller HDV Technology
Provides a sharp detailed view of the weld pool with minimal distortion.
2.5 Light State
For a brighter view while grinding.
Exclusive Miller ClearLight Technology
For a brighter, clearer weld view.
Exclusive Miller X-Mode Technology
For outdoor, low amp TIG and out of position welding.
Exclusive Miller InfoTrack Technology
With 2x memory functions. Tracks arc time and arc counts.
| Product Specifications | |
|---|---|
| Size (Blower Assembly) | 210 x 178 x 76 mm |
| Weight (Blower Assembly, Filters, Belt Shoulder Straps and Battery) | 1362 gm |
| Air Filter Assembly | Spark guard screen, foam prefilter, and particulate (HEPA) filter - down to 0.3 micrometers in size |
| Air Flow | Low Speed: 6.18+ CFM (175+ LPM) Medium Speed: 6.89+ CFM (195 LPM) High Speed: 7.59 CFM (215 LPM) |
| Operating Temperature | -5 to 55° C |
| Storage Temperature | -10 to 80° C |
| Battery Type | Rechargeable lithium 14.8V, 3A |
| Battery Charging Time | About 3 hours |
| Battery Life | 500 charges - run time dependent on air flow rate and filter load |
| Belt Size | 711 to 1397 mm |
| Standards | AS/NZS 1716.2012 |
| Protection Level | Class 2 particulate filter meets AS/NZ1716:2012 standards |
| Warranty | 1 Year Warranty (Blower Unit) |
| Product Specifications | |
|---|---|
| Viewing Area | 97 x 60 mm |
| Cartridge Size | 114 x 120 x 9.5 mm |
| Modes | X-Mode, Weld, Cut, Grind |
| X-Mode | Shade 8 - 12.5 |
| Grind Mode | Shade 2.5 |
| Cut Mode | Shade 5 - 8 |
| Weld Mode | Shade 8 - 12.5 |
| Switching Speed (Light to Dark) | 1/25,000 sec |
| Delay Speed (Dark to Light) | 0.1 - 1.0 sec |
| Arc Sensors | 4 |
| Optical Grade | EN379 1/1/1/2 |
| Weight | 709g |
| Power | CR2450 lithium battery and solar assist |
| On/Off Control | Automatic on, off after 45 minutes |
| Operating Temperature | -10 to 55° C |
| Australian Standards | AS/NZS 1338.1 (Auto-Darkening) AS/NZS 1337.1B (High Impact) |
| Warranty | 3 Years (Auto-Darkening lens only) |
| Parts and Accessories | Part Number |
|---|---|
| Blower Assembly Complete | 287172 |
| Filter, Particulate (HEPA) (2-Pack) | 287170-6 |
| Filter, Particulate (HEPA) (6-Pack) | 287170-6 |
| Filter, Particulate (HEPA) (36-Pack) | 287170-36 |
| Filter, Prefilter (Foam) | 235674 |
| Filter Cover | 287175 |
| Battery, Blower, 14.8V, 3A (use with charger 282077) | 287178 |
| Charger, 16.8V, 2A (use with battery 287178) | 282077 |
| Belt Pad (PAPR) | 288941 |
| Shoulder Straps | 287177 |
| Belt | 287176 |
| Belt Extension | 244151 |
| Bag | 228028 |
| Breathing Tube Assembly | 261704 |
| Breathing Tube Cover, Flame-resistant | 265312 |
| Flowmeter | 277222 |
| Spark Gaurd | 235676 |
