Three Phase
32 Amp Plug
- Workshops
- Medium to Heavy Fabrication
Description
THE PERFECT MIG CHOICE FOR MEDIUM TO HEAVY FABRICATION.

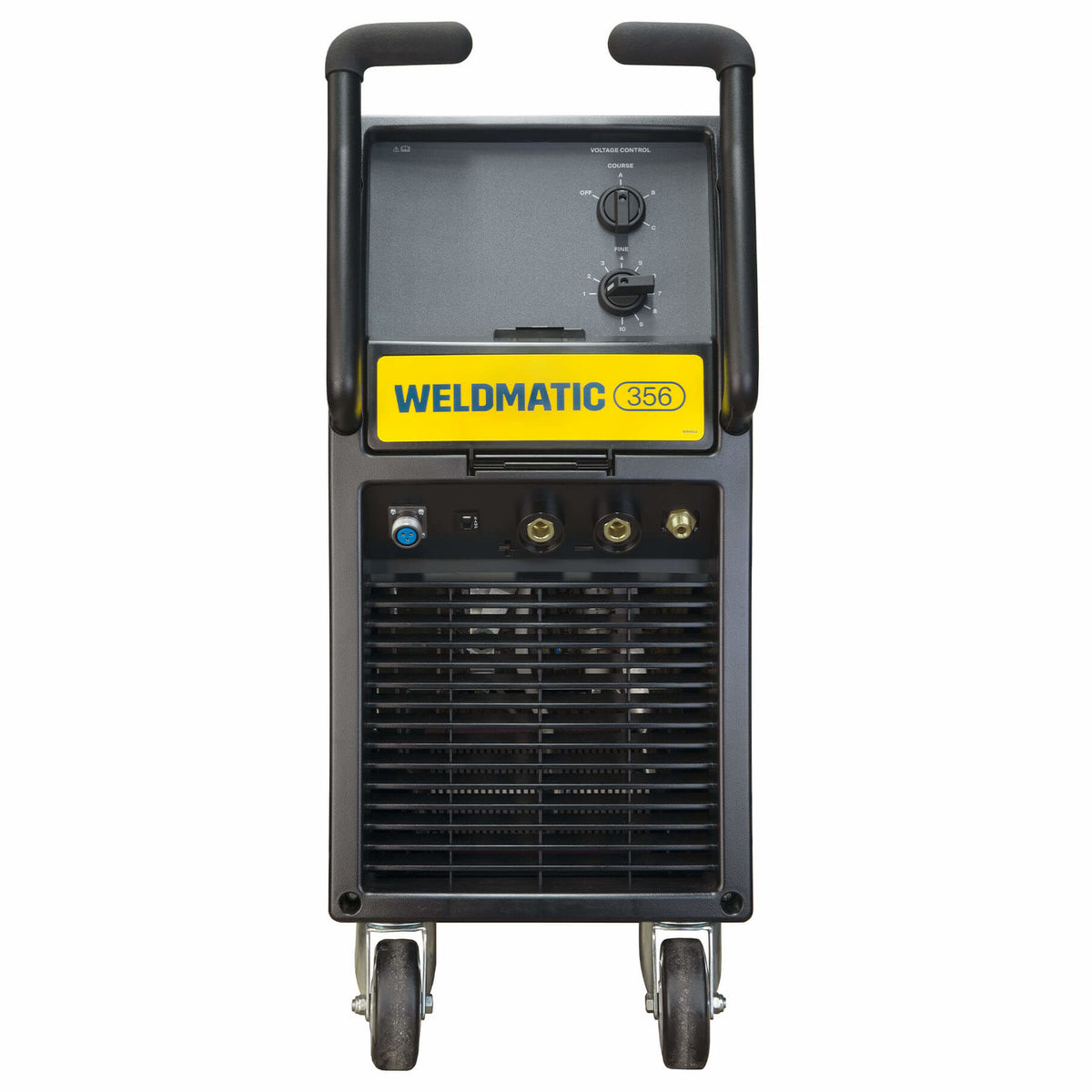

The Weldmatic 356 is the ideal choice for medium fabrication workshops and comes equipped with Fan-on-Demand™ which will improve efficiency, reduce maintenance and provide a safer working environment. Packaged with a separate wire feeder it provides extra flexibility for a workshop set up and enables custom set up to suit the job including arc start, wire speed, burn back, spot time, creep mode, pre and post gas plus more!
Built with quality components for tough Australian conditions it comes with 3 years warranty, offering professional welders reliability and performance that’s second to none.
- 356 A three phase MIG welder
- 355 A at 31.8 V 40% Duty Cycle
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Start - Modifies arc starting condition, wire accelerates at different speed depending on application
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminium starts
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21 rated
- Generator compatible - 16.5 kVa
IP21 Rated
Built-In Thermal Protection
Prevents the machine from operating beyond its safe thermal zone.
Fan-on-Demand™ Cooling Fan
Reduces noise, energy use and contaminates.

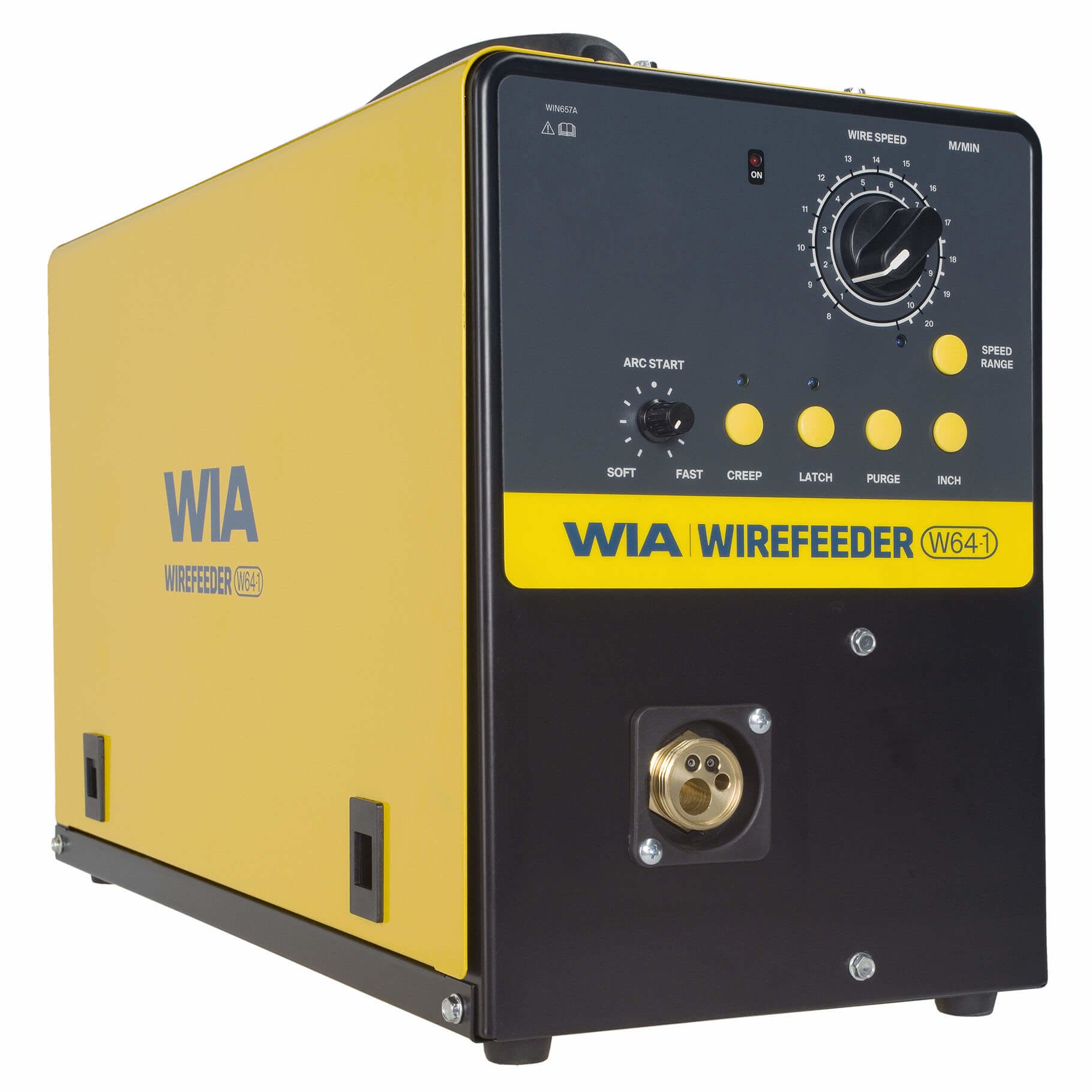

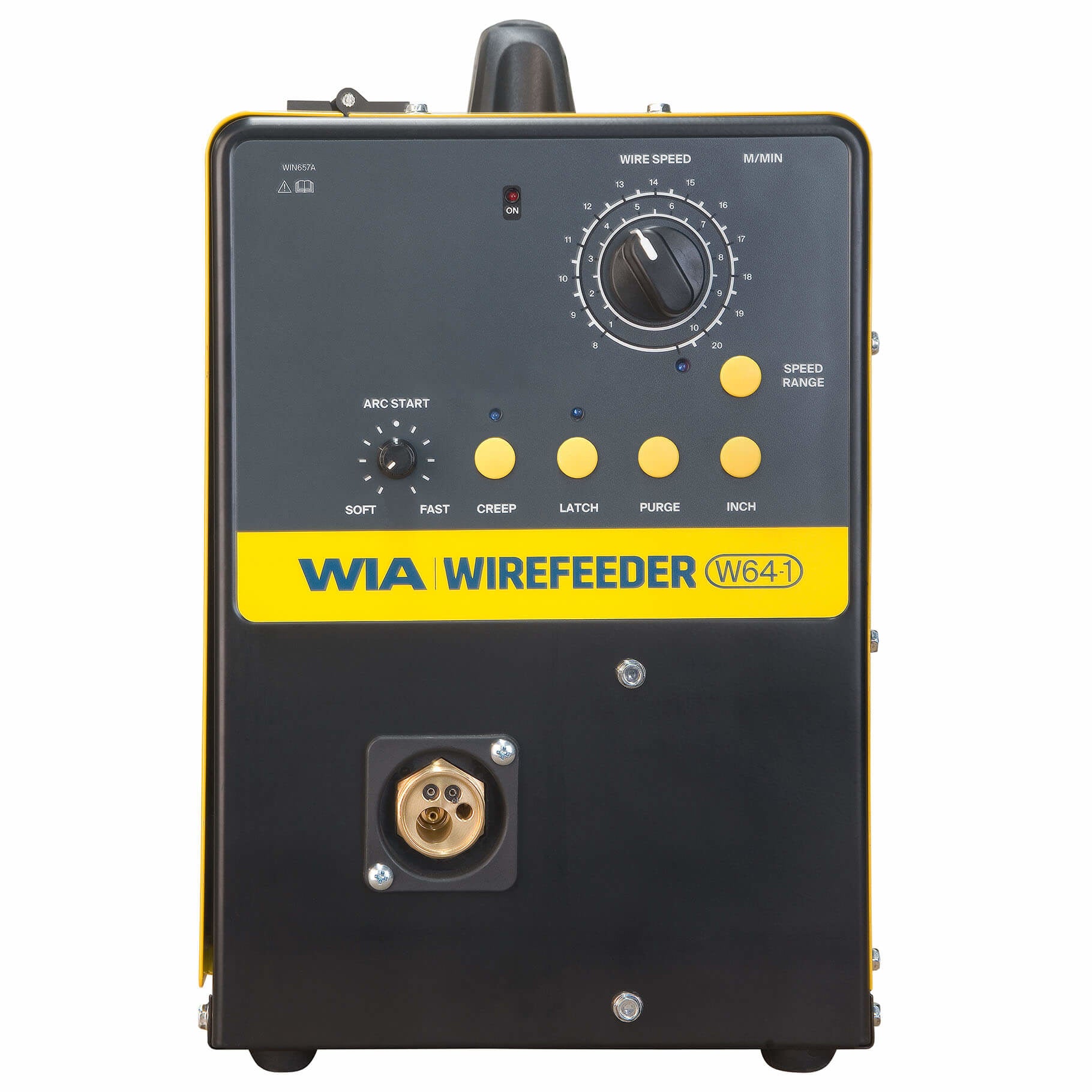

Separate Wirefeeder
Takes 5kg and 15kg spools. Suits both gas shielded and gasless wires. A separate wire feeder provides extra maneuverability around the workshop for spaces that won't allow machines access. Perfect for welding at heights or small spaces.
Heavy Duty Four Geared Wire Drive
With large and strong gears and ball bearings for extra reliability and performance.
Burnback
Controls how far the wire burns back to the tip on completion of the welding operation.
3 Year Warranty
| Primary Voltage | Rated Primary Current | Max. Primary Current | Recommended Generator KVA | Supply Plug | IP Rating | Weight | Standards Compliance |
|---|---|---|---|---|---|---|---|
| 415 VAC – 50 Hz | 15 Amps | 23 Amps | 16.5 kVA |
32 Amp |
IP21S |
126kg |
AS60974.1 & AS1674.2 (VRD) |
| Output Range | Rated Output @ 40°C (10min) | Wire Size Range | Material Thickness Range |
|---|---|---|---|
| 30A/15.5V-355A/31.8V |
355A/31.8V @40% |
0.6-1.6mm (Solid) |
Welds up to 12mm+ steel plate, single pass |
