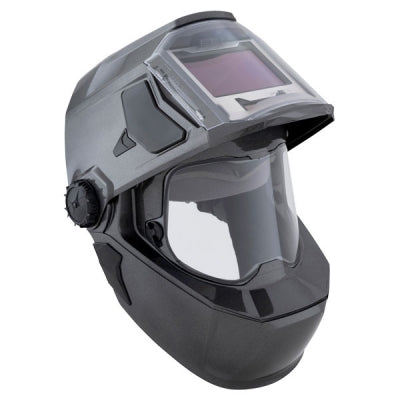

WIA HLMET ULTRA HDV

Large Integrated Grind Shield

The 174mm x 126mm viewing area provides a clear view for grinding and other tasks, increasing helmet-on-time, decreasing the potential for eye injuries.

HDV Technology

Provides a sharp detailed view of the weld pool with minimal distortion.

Exclusive Miller ClearLight 2.0 Lens Technology

Advanced high-definition optics for the most realistic view that’s clearer and brighter.

Exclusive Miller InfoTrack 2.0 Technology

Provides memory, arc time and arc count functions that allows the weld operator to store favourite settings. Keep track of weld time and arc starts.

Exclusive Miller X-Mode Technology

Allows the lens to darken only when you start to weld. Ideal for outdoor, low amp TIG and obstructed applications.

Gen 4 Headgear

Features an oversized back pad and multiple head straps for a secure fit, eliminating over tightening and discomfort.

Half Shade Settings

Provides precise lens adjustment for optimised comfort and vision.

Aluminium Heat Shield

Reflects heat, keeping the lens and operator cool.

2.5 Light State

Allows operators to keep their hood down between welds, improving safety and productivity.

Memory Function

For easy switching between two preset customised memory settings.

Huge 174x126mm Integrated Grind Shield

The 174mm x 126mm viewing area provides a clear view for grinding and other tasks, increasing helmet-on-time, decreasing the potential for eye injuries.

Exclusive Miller HDV Technology

Provides a sharp detailed view of the weld pool with minimal distortion.

2.5 Light State

For a brighter view while grinding.

Exclusive Miller ClearLight Technology

For a brighter, clearer weld view.

Gen 4 Headgear

For a secure and comfortable fit.

Exclusive Miller Infotrack Technology

With memory function, tracks weld time and arc counts.

Exclusive Miller X-Mode Technology

The lens darkens only when you start to weld.

SPECIFICATIONS

Product Specifications
Viewing Area	97 x 60 mm
Cartridge Size	114 x 120 x 9.5 mm
Modes	X-Mode, Weld, Cut, Grind
X-Mode	Shade 8 - 12.5
Grind Mode	Shade 2.5
Cut Mode	Shade 5 - 8
Weld Mode	Shade 8 - 12.5
Switching Speeds (Light to Dark)	1/25,000 sec
Delay Speeds (Dark to Light)	0.1 - 1.0 sec
Arc Sensors	4
Optical Grade	EN379 1/1/1/2
Weight	709g
Power	CR2450 lithium battery and solar assist
On/Off Control	Automatic on, off after 45 minutes
Operating Temperature	-10 to 55° C
Australian Standards	AS/NZS 1338.1 (Auto-Darkening) AS/NZS 1337.1B (High Impact)
Warranty	3 Years (Auto-Darkening lens only)

PARTS AND ACCESSORIES

Parts and Accessories	Part Number
Replaceable battery	217043P2
Magnifying Lens 1.5x	212238P
Magnifying Lens 2.0x	212240P
HDV front cover lens	305004
HDV grind shield	305007
Cover lens inside	216327
Tear away grind shield	258853
Headgear	260486
Headgear fabric	770249
Adjustment angle/stop kit	265891
