Description

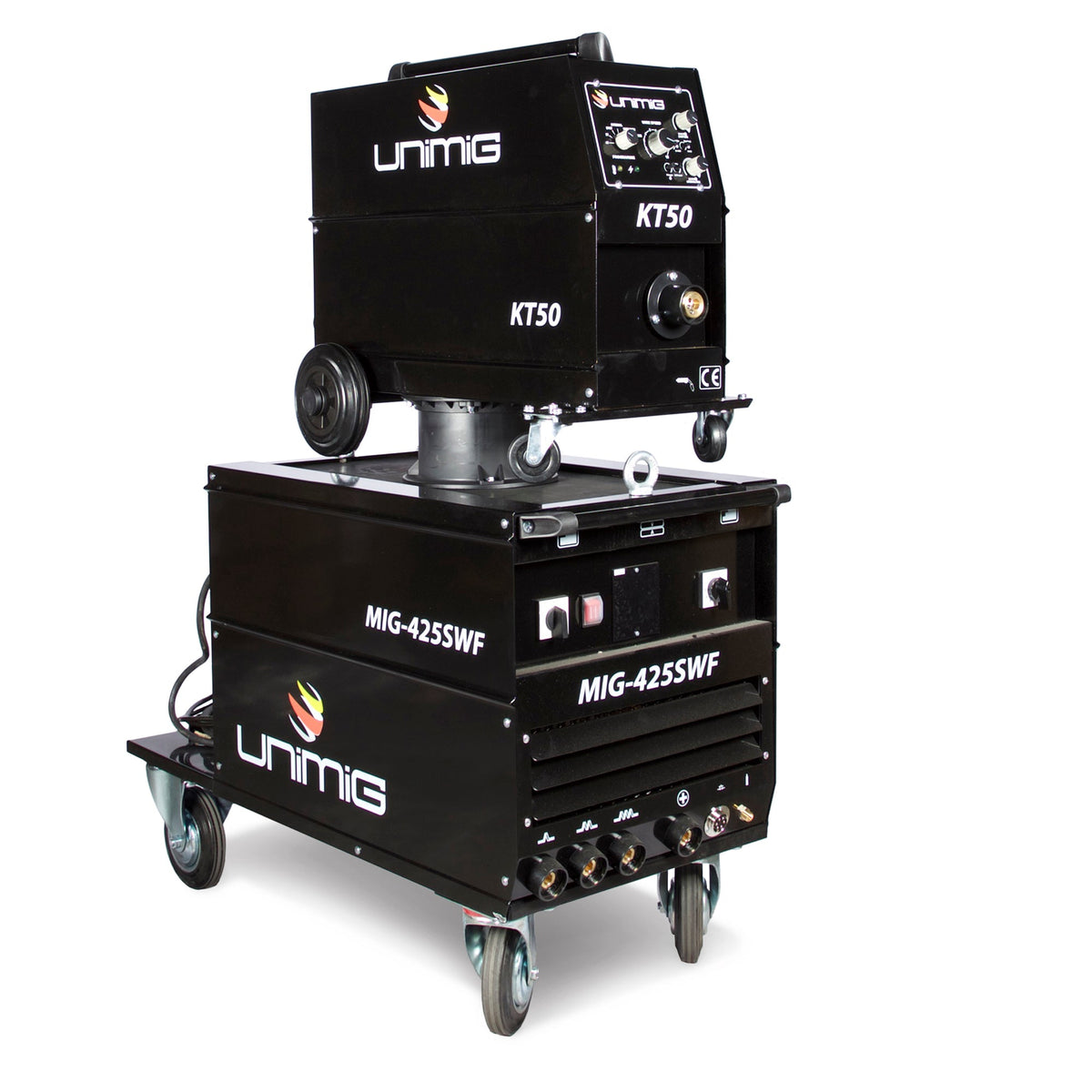

WORKSHOP 425 SWF MIG WELDER
The WORKSHOP 425 SWF MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 30 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.
Go to greater heights with the addition of the KT50 Separate Wire Feeder feed unit which covers you an extra 10 metres, giving you increased manoeuvrability. It also prevents dust and moisture fouling you wire with its smart enclosed system design meaning no contaminates in your welds.
PACKAGE INCLUDES
- WORKSHOP 390 SWF MIG Welder
- KT50 SWF Unit
- 10m interconnecting cables
- 4m SB36 MIG Torch
- 400 Amp Earth Clamp & Lead
- Twin Gauge Argon Regulator
- 2m Gas Hose Complete with fittings
- Operating Manual
THREE PHASE
415V POWER
30 VOLTAGE STEPS
EXTRA PRECISE WELDING PARAMETERS
4 GEARED WIRE DRIVE
FOR SMOOTHER WIRE FEEDING.
SEPARATE WIRE FEEDER
ADDS UP TO 10M OF EXTRA MANOEUVRABILITY.
SEPARATE WIRE FEEDER
This machine includes a Separate Wire Feeder unit with the added benefit of being able to remove the wire feeder from the power source up to a distance of 10m. This is perfect for workshops when moving a complete machine isn’t an option.
BUILT TO LAST
Designed and manufactured with the best quality components for increased durability and reliability. Workshop series machines feature Copper wound transformer and smoothing choke, large 250mm cooling fan with enclosed motor, to maximise cooling for high duty cycle operation.
VOLTAGE STEPS
30 position switching, allows precise setting in small increments of welding voltage so the operator can achieve the correct weld penetration.
FOUR GEARED WIRE DRIVE
This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
MACHINE SPECIFICATIONS
415V Three Phase
No plug supplied (32 AMP Recommended)
20.0
30 Voltage Steps, 16-32.5V
IP21
I
24.0
35/50
AS/NZ60974-1
Mild Steel, Aluminium, Stainless Steel
3
MIG SPECIFICATIONS
40-400 AMPS
60% @ 400A
0.6-1.2mm
5kg/15kg
2-30mm
40/32 (x2)
SIZE & WEIGHT
1270 x 940 x 600mm
182kg
10m
MACHINE FEATURES
Four Geared
Over Temperature Warning
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 3-year warranty on all WORKSHOP Machines*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
